1-PC. SCREWED END BALL VALVE

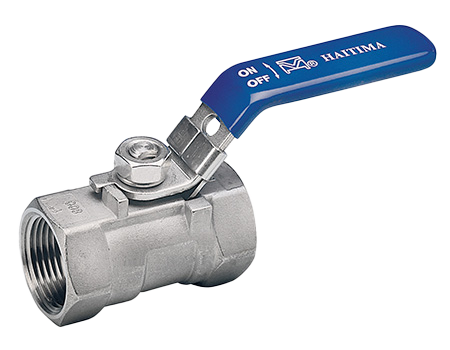

2017K
FEATURE
- Reduced port, 1/4″~3″ (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- Locking device
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 1022

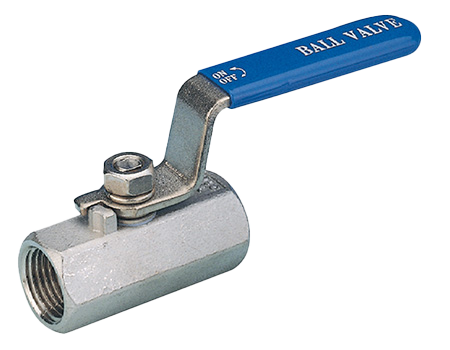

2017
FEATURE
- Reduced port, 1/4”~2” (DN8~DN50)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Antistatic device (option)
- Polished body (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 1022

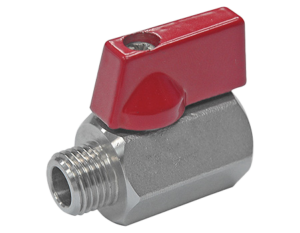

2017S
FEATURE
- Reduced port, 1/8″~3/4″(DN6~DN20)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Connection type : Female X Male
Female X Female
Male X Male
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

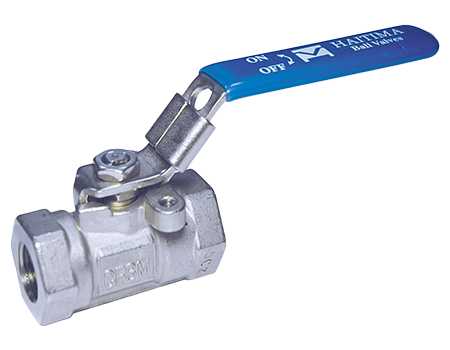

2017BM
FEATURE
- Reduced port, 1/4”~2” (DN8~DN50)
- W.P. : 2000 WOG (PN150)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Antistatic device (option)
- Locking device
- Tapped & drilled mounting pad (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

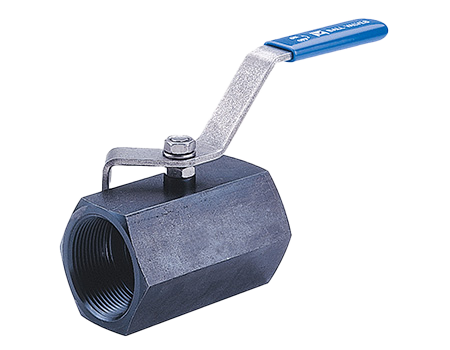

2017C
FEATURE
- Reduced port, 1/4”~2” (DN8~DN50)
- W.P. : 2000 WOG (PN150)
- W.T. : -20°C~200°C (4°F~392°F)
- Forged body
- Blowout proof stem
- Antistatic device (option)
- NACE MR0175
- ASME B16.34 Wall thickness
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226
