2-PC. SCREWED END BALL VALVE

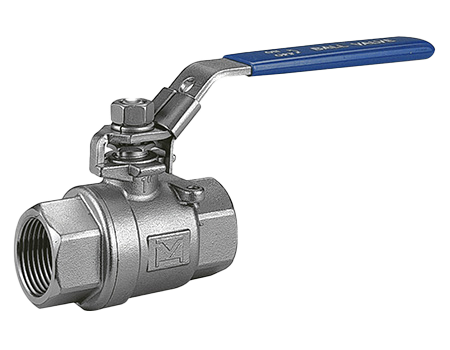

2006
FEATURE
- Full port, 1/4″~4″ (DN8~DN100)
- W.P. : 1/4″~1″ – 2000 WOG (PN150)
1-1/4″~2″ – 1500 WOG (PN100)
2-1/2″~4″ – 1000 WOG (PN63)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Antistatic device (option)
- Locking device
- Tapped & drilled mounting pad (option)
- TALuft approved (option)
- Length conform to DIN 3202 Part 4 – M3 : 2006M3 (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

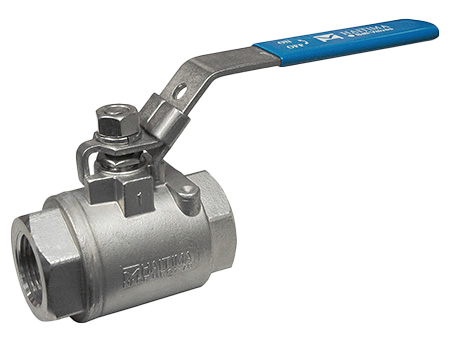

2006WB
FEATURE
- Full port,1/4″~4″ (DN8~DN100)
- W.P. : 1/4″~1″ – 2000 WOG (PN150)
1-1/4″~2″ – 1500 WOG (PN100)
2-1/2″~4″ – 1000 WOG (PN63)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Antistatic device (option)
- Locking device
- Tapped & drilled mounting pad
- API 607 Fire safe approved
- ASME B16.34 Wall thickness
- API 608 Design
- NACE MR0175
- Seal welded ends
- TALuft approved (option)
- Economic pattern 2006W
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

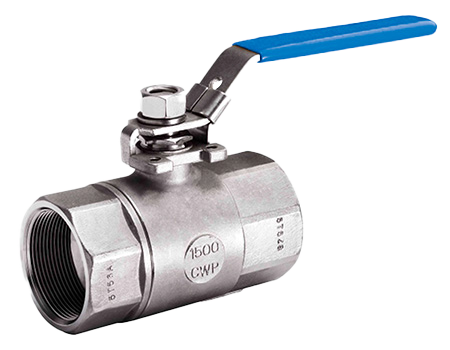

2007A
FEATURE
- Standard port,1/4″~2″ (DN8~DN50)
- W.P. : 1/4″~1″ – 2000 WOG (PN150)
1-1/2″~2″ – 1500 WOG (PN100)
- W.T. : -20°C~200°C (4°F~392°F)
- Investment casting
- Blowout proof stem
- Antistatic device (option)
- Locking device
- Tapped & drilled mounting pad (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

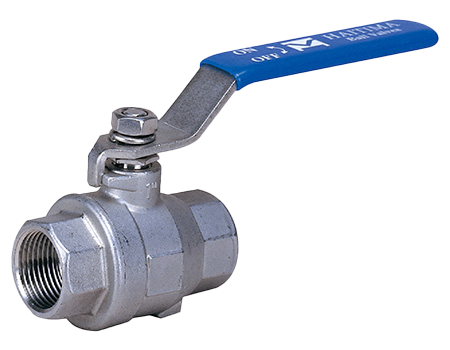

2009
FEATURE
- Full port, 1/4″~3″ (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226
2009D
FEATURE
- Full port, 1/4″~2″ (DN8~DN50)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Live-loading design
- Anti-static device
- Locking device
- ISO 5211 Direct mounting pad
- ISO 15848 fugitive emission approved (option)
- Automation accessories (option)
- Spring return handle (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

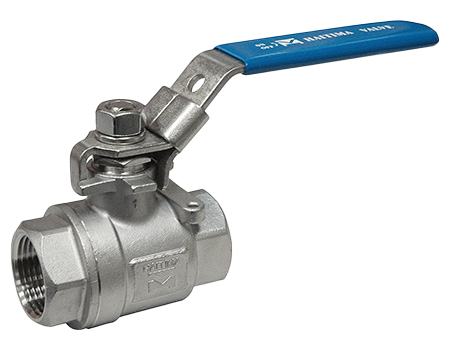

2006S
FEATURE
- Full port, 1/4″~3″ (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Locking device
- Tapped & drilled mounting pad (option)
- TA-Luft approved (option)
- Length conform to DIN 3202 Part 4 – M3 : 2006SM3 (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

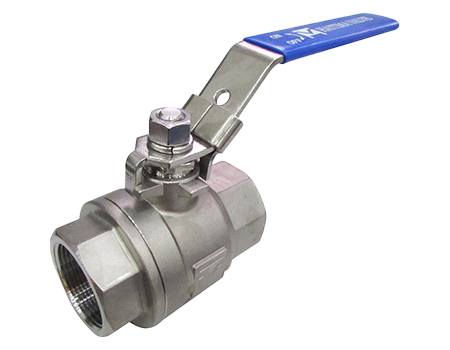

2006SA
FEATURE
- Full port, 1/4”~3” (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- Locking device
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

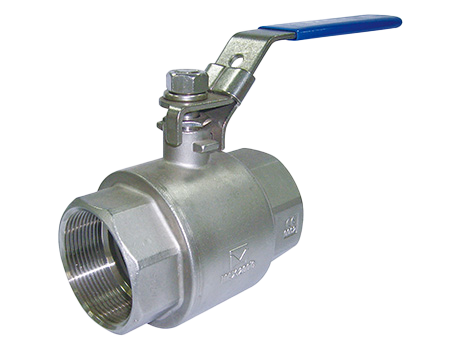

2006SW
FEATURE
- Full port, 1/4″~3″ (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Locking device
- Seal welded ends
- TA-Luft approved (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226

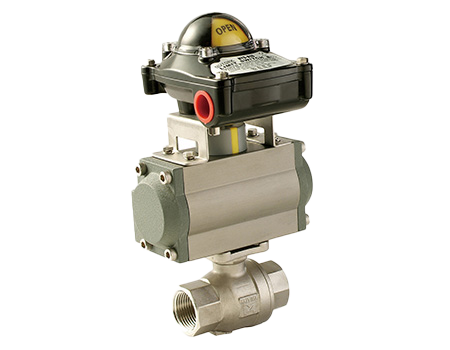

2006SD
FEATURE
- Full port, 1/4″~3″ (DN8~DN80)
- W.P. : 1000 WOG (PN63)
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Live-loading design
- Anti-static device
- Locking device
- ISO 5211 Direct mounting pad
- ISO 15848 fugitive emission approved (option)
- Automation accessories (option)
- Spring return handle (option)
- Thread type : ASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 7-1 & EN 10226
