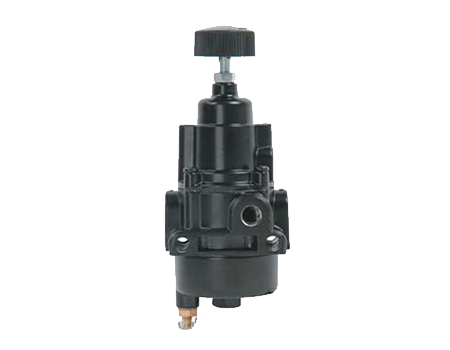

HAFR50
FEATURE
- Sensitivity : 25.4mm (water column)
- Flow Capacity : 2565LPM
- Exhaust Capacity(5psi Above, 20psi Set Point) : 2.8LPM
- Effect Of Supply Pressure Variation(25psi) On Outlet Pressure : < 0.2PSI(0.01BAR)
- Max. Input Pressure : 1700KPa
- Output Pressure Range : 0KPa~200KPa / 0KPa~400KPa / 0KPa~800KPa
- Filtration : 5um
- Temperature : -18°C~71°C
- Total Air Consumption At Max. Output : 2.8LPM
- Size : 1/4″NPT
- Outline Dimension (W x L x H) : 81mm x 80mm x 184mm
- Weight : 0.8 Kg(1.76 Lbs)
- Material Of Construction :
– Body : Die-cast aluminum with vinyl paint
– Diaphragm : Buna-N elastomer with polyester fabric - Mounting : Bracket for pipe and panel

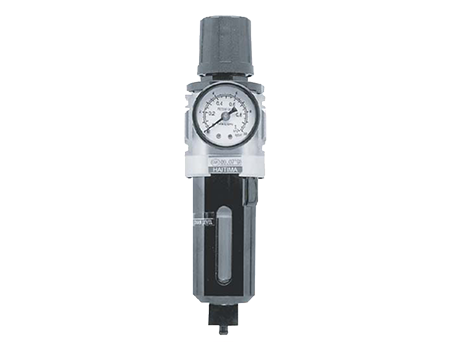

HAFR30
FEATURE
- Size :
8A : PT 1/4″
10A : PT 3/8″ - Effective Orifice :
8A : 32mm²
10A : 34mm² - Medium : Air
- Operating Pressure : 0kgf/cm²~9.9kgf/cm²(0MPa~0.99MPa)
- Proof Pressure : 15kgf/cm²(1.5Mpa)
- Regulation Pressure : 0.5kgf/cm²~8.5kgf/cm²(0.05MPa~0.99MPa)
- Ambient Temperature : -5°C~60°C
- Filtration :
Std. : 5um
Option : 40um - Accessories : Pressure Gauge, Bracket
