HTS

FEATURE

1. Pressure Ranges
   40 psig to 100 psig
   3 bar to 8 bar
2. Temperature Ranges
   – Std.(NBR O-rings) : 20°C~80°C (-4°F~176°F)
   – Lower Temp. (Silicone O-rings) : 40°C~80°C (40°F~176°F)
   – High Temp. (Viton O-rings) : 15°C~150°C (+5°F~300°F)
   – Note : Special grease is required for low and high temperature service condition.
3. Operating Media
   Filtered dry or lubricated air for non-corrosive gas, water or light hydraulic oil. The maximum particle size must not exceed 30 microns.

4. Stroke Adjustment
   0° and 90° with standard adjustment ±5°.
5. Lubrication
   All moving parts are factory lubricated for entire life cycle of actuator.
6. Construction

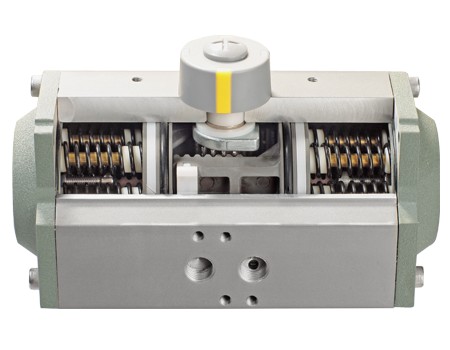

   Twin piston rack and pinion actuator design, suitable for indoor and outdoor installation.
7. Connections
   Bottom drilling complies with ISO 5211/DIN 3337 to match valve. Interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDINDE-3845, NAMUR standard.
8. Inspection
   Every actuator is hydraulically tested, certified and guaranteed for a minimum of 500,000 cycles.
